Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

wenyou

प्रमाणन:

ISO9001, ISO14001, SGS, and UL

मॉडल संख्या:

8517

संपर्क करें
एक उद्धरण का अनुरोध करें
उत्पाद विवरण
वर्गीकरण:
डबल घटक चिपकने वाले
प्रयोग:
इंसुलेटर, ट्रांसफार्मर, और अन्य इन्सुलेशन उत्पाद
आवेदन:
मध्यम और उच्च वोल्टेज अनुप्रयोगों के लिए आउटडोर विद्युत इन्सुलेटर
एपॉक्सी राल की उपस्थिति:
हल्का पीला पारदर्शी चिपचिपा तरल
25°C पर श्यानता:
1000 - 2500mpa.s
25°C पर घनत्व:
1.16 - 1.20 ग्राम/सेमी3
25°C पर वाष्प दबाव:
< 0.01Pa
फ़्लैश प्वाइंट:
लगभग 135°C
विवरण:
ट्रांसफार्मर कॉइल कैप्सुलेशन के लिए लचीला कास्टिंग इपॉक्सी राल - विभिन्न परिस्थितियों के अनुकूल
एपॉक्सी मूल्य:
4.5 - 5.0Eq/kg
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
नमूने के रूप में 20 किग्रा/बाल्टी
मूल्य
विनिमय योग्य
पैकेजिंग विवरण

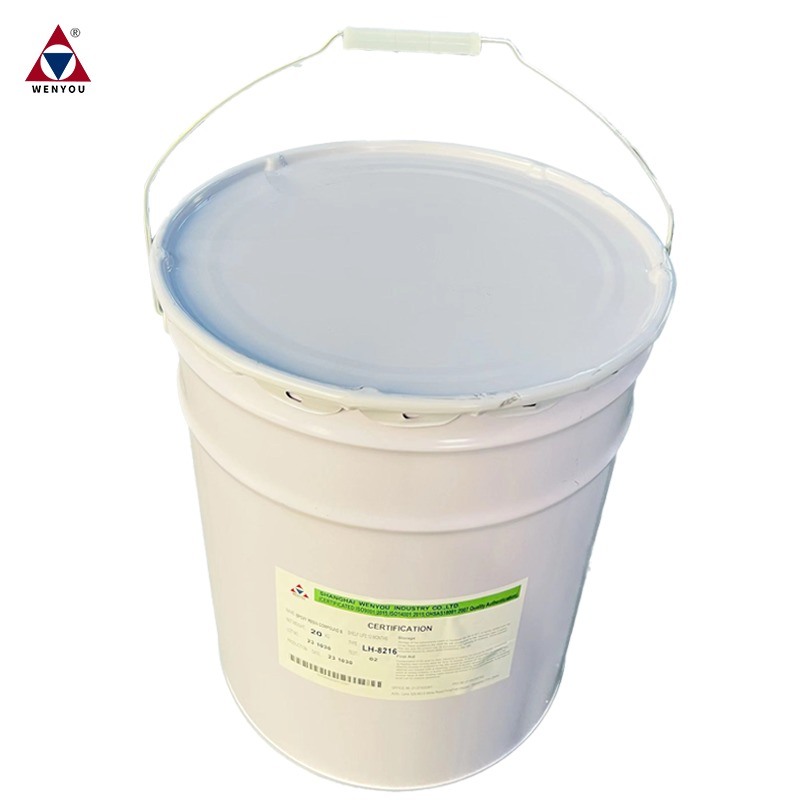

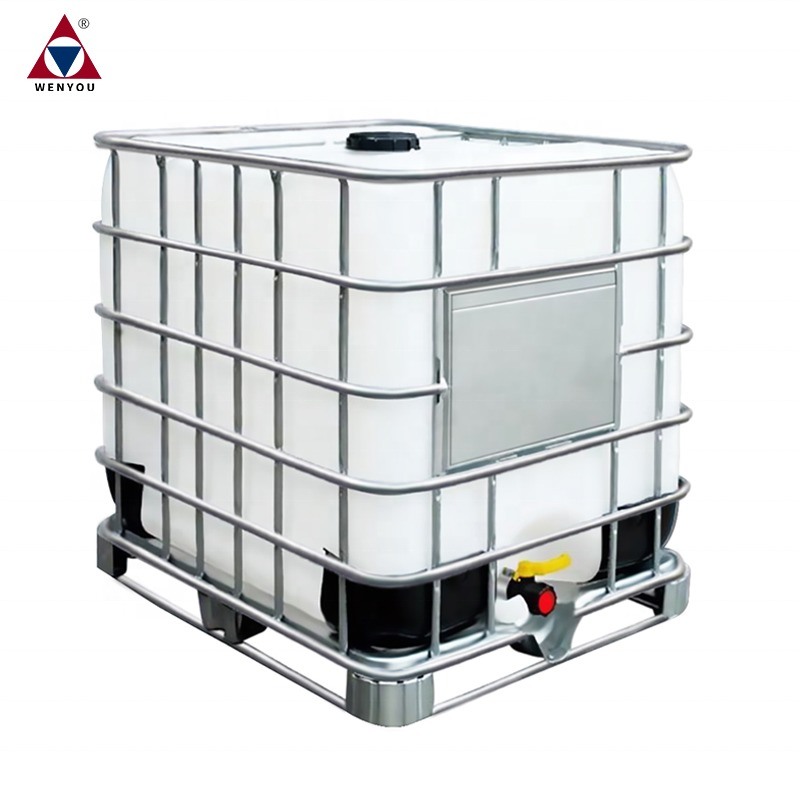

20 किग्रा/बाल्टी, 220 किग्रा/बैरल, 1200 किग्रा/टैंक
प्रसव के समय
7 -10 कार्य दिवस
भुगतान शर्तें
आम तौर पर टी/टी, एल/सी
आपूर्ति की क्षमता
स्टॉक में प्रचुर मात्रा में कच्चा माल
उत्पाद वर्णन
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:

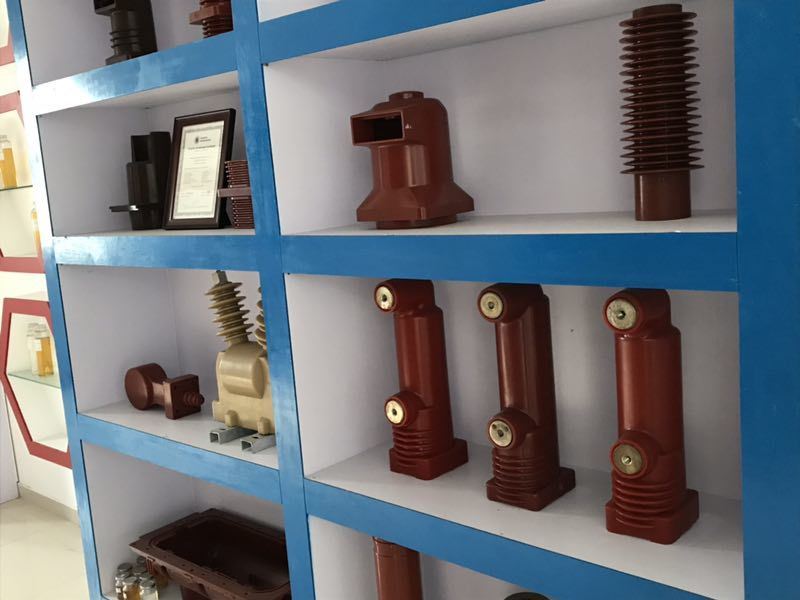

  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
